Economy Heavy Load VFD PQ580M

首页 » Products » Economy Heavy Load VFD PQ580M

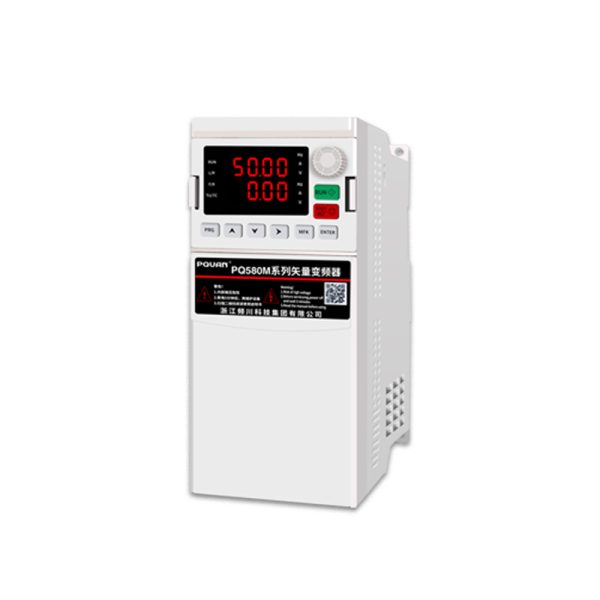

PQ580M economy inverter is primarily a compact, low-power inverter that utilizes vectorized V/F control technology and compatible with vector control. It offers a variety of commonly used functions such as PID control, multi-speed operation, DC braking, Modbus communication, and multiple macro functions (e.g., constant pressure water supply, machine tool, engraving machine macro functions, etc., easily solving application scenario challenges).
With comprehensive functions and a smaller size, it can further reduce installation space. This economical model is designed for small-scale automated equipment and is particularly suitable for low-power transmission applications in electronic equipment, food packaging, woodworking, glass, and other industries.

Economy Frequency Inverter PQ580M–Parameters

+ inbuilt simple vector control for asynchronous motors;
+ control mode is V/F control or simple vector control;
+ output frequency Max 3200Hz;
+ operates with a carrier frequency of 0.5 to 16KHz;
+ Standard built-in brake unit for 0.4KW- 30KW;
+ MODBUS RS-485 communication interface;
+ Built-in PID, PLC, AVR, JOG, Timers, protections, EMC filter;
+ safety function EMS emergency machine stop;
+ removable control panel with external installation up to 20m;
+ 5 digital inputs,including 1 high-speed 50KHz pulse;
+ 2 analog input 0-10V/0-20 mA;
+ 2 digital output,including 1 high-speed 50KHz pulse;
+ 2 analog output voltage 0-10V and 0-20mA/4-20mA;
+ 2 relay output terminal;

Features

▌Economy Frequency Inverter Characteristics:

Wide Frequency Output Range 0-600Hz.
Multi-Point V/F Curve Setting for flexible configuration and adaptation to different load requirements.
Keypad Parameter Copy Function for easy debugging of multiple devices.
Suitable for a wide range of industries and can be expanded with dedicated function modules for different applications.
Multiple Hardware and Software Protections and Optimized Anti-Interference Technology to improve device reliability.
Supports multi-speed and swing frequency operation, with 15-speed control available via external terminals.
Employs unique adaptive control technology for automatic current limiting, voltage limiting, and undervoltage suppression during operation.
Optimized external installation, internal structure, and independent air duct design with a fully enclosed electrical space to enhance heat dissipation and protection.
Automatic output voltage stabilization by automatically adjusting the output pulse width to eliminate the impact of grid voltage fluctuations on the load.
Built-in PID Control Function for easy closed-loop control of temperature, pressure, and flow, reducing system costs.
Supports the standard MODBUS communication protocol for easy communication with PLCs, industrial PCs, and other industrial control devices.
One-button macro function supports one-button start for various working modes such as constant pressure water supply, engraving, and machine tools, providing convenient and stable operation.

▌Application Range
Metal processing ,digital machine tool, wire drawing bench and other mechanical equipment. paper making equipment ,chemistry industry ,medicine industry and textile industry ,all kinds of fans and pumping load .etc

Specifications

item		Specifications
Input	Rated Voltage, Frequency	3 phase (4T) 380V；50-60HZ
Input	Allowed Voltage Range	3 phase (4T) 320V~460V；50-60HZ
Output	Voltage	4T; 0~380V
	Frequency	0~600HZ
	Overload Capacity	150% for 60s, 180% for 3s
Functions	Control Mode	V/F control, Simple Vector control
	Input Frequency Resolution	Digital Setting： 0.1Hz
	Input Frequency Resolution	Analog Setting： 0.01V corresponding maximum frequency ×0.025%
	V/F Curve	Line Type、Multi-point Type, N-power V/F curve
	Torque Boost	Automatic Torque Boost, Manual Torque Boost 0.1%~30.0%
	Multi-speed Running	15 segment programmable multi-vlocity control, multi operation modes.
	Built-in PID	easy to realize process-controlled closed loop control system.
	Bus Support	RS-485：Modbus
Environment	Using Place	Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
	Altitude	0~4000m；Derating use when more than 1000m (decrease by 1% per 100 meters)
	Ambient Temperature	-10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9m/s (0.6g)
	Storge Temperature	－20℃~＋60℃
