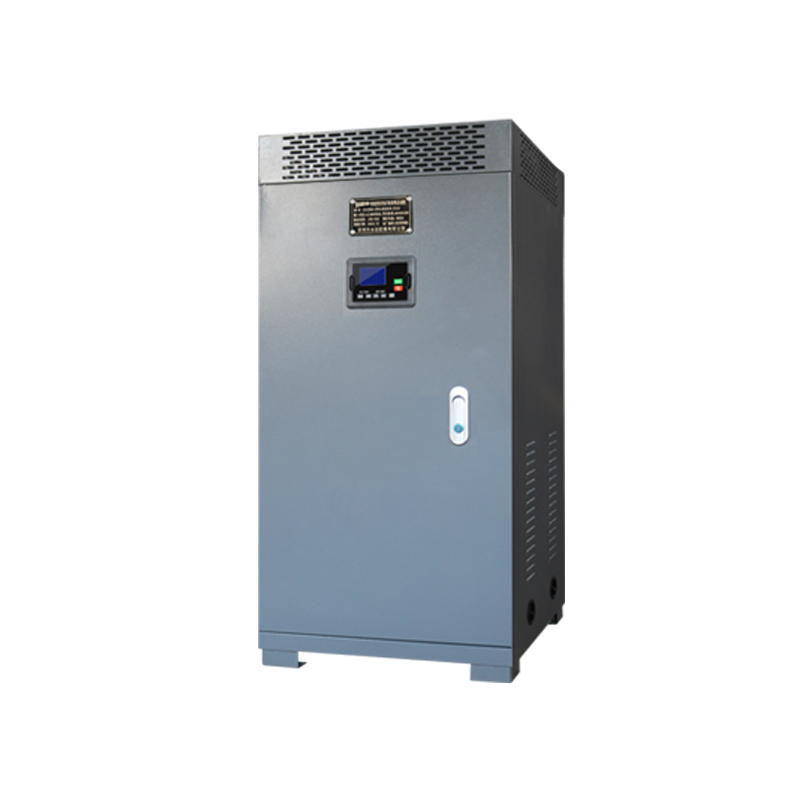

▌Integrated online/bypass Bypass Soft Starter Cabinet Characteristics:
Multi-loop Control Systems:
Provide precise motor startup and operation control.
Smooth Acceleration and Deceleration:
Minimize mechanical wear, extending the lifespan of both the motor and connected equipment.
Multiple Built-in Protections:
Ensure safe motor operation through defined parameters.
Broad Motor Compatibility:

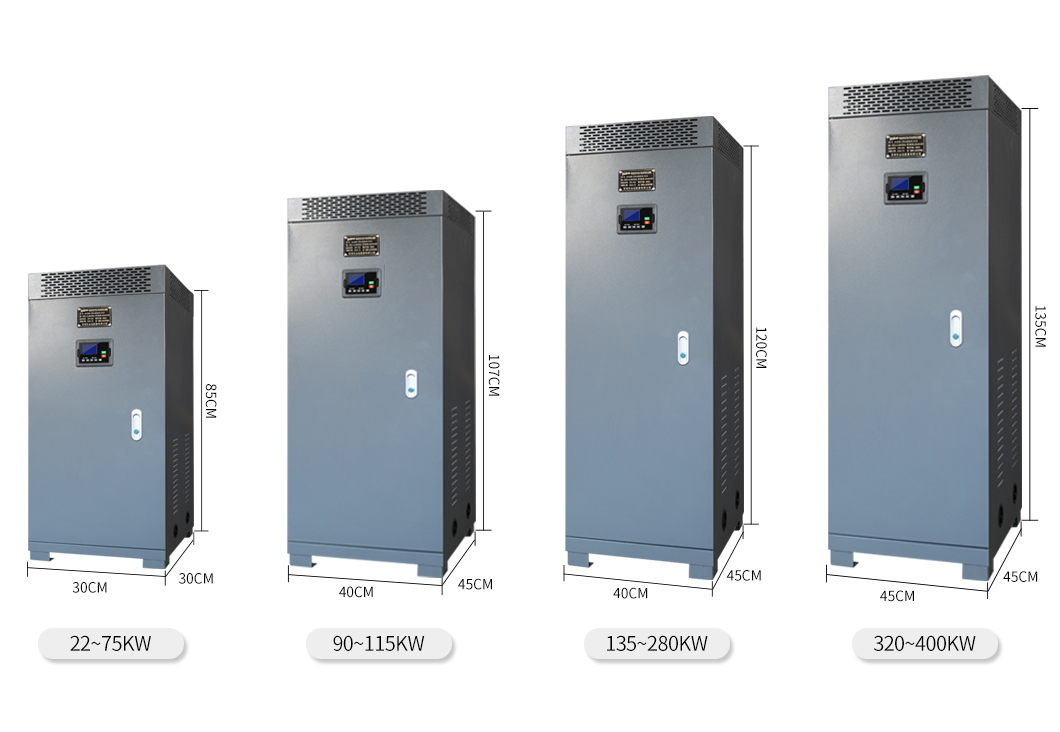

Suitable for various motor sizes, offering versatile motor-driven applications.
No Bypass Contactors:
Reduce product price and maintenance costs, adapting to harsh environments like smoke and dust.
Lightweight Design:
Control cabinet weight is only half that of a self-coupling starter.
Comprehensive Protection and Economic Benefits:
Features complete protection functions, reliable performance, long service life, and high economic efficiency.
Reduced Operating Costs: E
mploys online thyristor operation, eliminating the need for AC contactors and significantly lowering long-term maintenance expenses.
Simplified Maintenance:
Features a low failure rate, with common faults easily resolved, reducing maintenance workload.
Plug-and-Play Operation:
Eliminates the need for complex on-site debugging, simplifying the installation process and saving time and labor.
Intelligent Control and Display:
Features a large LCD Chinese display for easy parameter setting and querying. It implements current, voltage, and torque closed-loop control.
Flexible Output and Cost-Effectiveness:
Equipped with programmable fault relay output, multifunctional programmable relay output, and 0-20mA (or 4-20mA) analog current output. In applications where motor speed control is not required, it can partially replace frequency converters, offering a lower-cost alternative.
▌Environmental requirements:
Altitude: Less than 3km. If exceeding 3km, power derating is required.
Ambient Temperature: -30°C to +55°C.
Ambient Humidity: Less than 90%, non-condensing.
Environment: No corrosive gases, no conductive dust, good ventilation.
▌NOTE:
Ensure a comprehensive understanding of your equipment’s operational load and performance requirements to accurately specify your electrical control cabinet.
▌Application:
Industrial Heavy Machinery:Provides controlled startup for heavy-duty equipment like compressors, conveyors, and crushers, minimizing power fluctuations and optimizing energy consumption. This leads to reduced mechanical wear and extended equipment lifespan.
Water Treatment and Pumping Systems:Ensures smooth startups for large pumps, maintaining stable system performance and minimizing wear. This contributes to consistent water flow and pressure, while also promoting long-term sustainability.
HVAC and Refrigeration:Reduces high startup currents for compressors and fans, preventing wear and ensuring system stability. Real-time energy tracking optimizes costs and maintains optimal temperatures for stored products.
Mining and Heavy Engineering:Facilitates smooth startups for conveyor belts and drilling equipment, reducing stress and increasing reliability in demanding environments. This enhances equipment durability and contributes to a safer working environment by minimizing breakdown risks.
